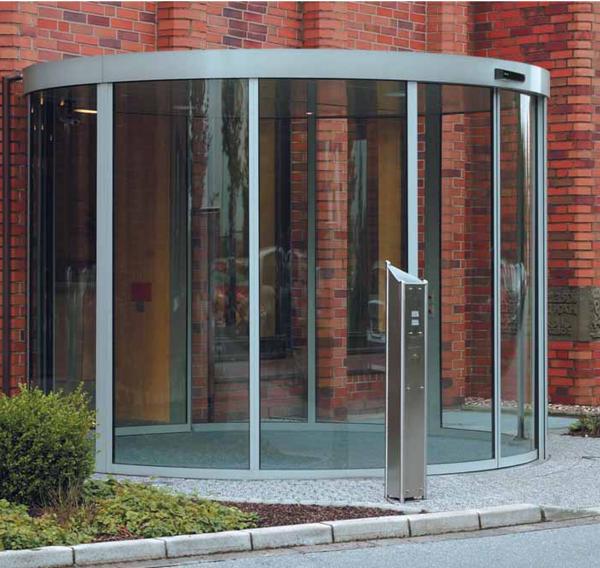

  • A curved sliding door unites the attractive appearance of a cylindrical door system with the benefits of an easily accessible sliding door. Whether in the form of a segmental arch, a semicircle, or a full circle up to a diameter of 4000 mm, the compactMaster CMR / CMR-F curved sliding door integrates perfectly into the architecture of a building. Through the use of sophisticated profiles (G30 profile system), extensive transparency is combined with comprehensive functionality. For escape and rescue routes, the CMR-F version offers broad opening widths up to 2500 mm. The drives are certified to DIN 18650/EN 16005 and type-tested by TÜV and comply with the current directives and standards. The CMR-F drive system is tested and suitable for use in escape and rescue routes (AutSchR).

  • In the CMR RC3 and CMR-F RC3 versions, the curved sliding doors are tested in accordance with EN 1627 to ensure they are burglar-inhibiting.

Convincing in detail

  • Type CMR-F: Redundant drive with 2 motors for use in escape and rescue routes

  • Type CMR RC3 / CMR-F RC3: Curved sliding door tested in
    accordance with EN 1627, in conjunction with sliding panels
    that can be locked manually using profile half cylinders on the inside as well as use of P5A glazing or a suitable filling.

  • Running smoothness thanks to large rollers

  • Fast opening speed of up to max. 0.9 m/s

  • Clear and simple operation

  • Integrated locking element at the sliding panel

  • Self-learning control system with many connection and adjustment options

  • Continuous floor guide

Options

  • Inclusion in building management systems and access
    controls

  • LED spotlights for installation in the aluminium ceiling

  • Glass ceiling

  • Air curtain system

  • Loose-fixed flange connection

  • Entrance mat

Technical Details


Application
1-leaf
2-leaf
Clear passage width [1] [2]
800 – 1250 mm
1000 – 2500 mm
Clear passage height [1]
max. 2700 mm
max. 2700 mm
Height of drive
115 mm
115 mm
Door leaf weight
max. 100kg / leaf
max. 100kg / leaf
Supply voltage
230V AC, 50Hz
230V AC, 50Hz
Power consumption
max. 160 VA (50 VA during operation)
max. 160 VA (50 VA during operation)
Hold-open time
0-255 s
0-255 s
Hold-open time with key impulse
0-255 s
0-255 s
Opening speed
max. 0,9 m/s
max. 0,9 m/s
Winter opening width [2]
50% – 100% of the clear passage width
50% – 100% of the clear passage width
Protection type / ambient temperature
IP 20 (for dry rooms only) / -15 °C up to +50 °C
IP 20 (for dry rooms only) / -15 °C up to +50 °C
