User-friendly access comfort, high throughput capacity and sophisticated optics: sensor barriers offer outstanding solutions for controlled physical access. Eight integrated light barriers per lane monitor the interior, protect against unauthorised entry and ensure convenient contactless access
Trapezoidal pillars in which card readers and release displays can be installed are mounted on the front and rear of the barrier body. Both sensor barriers are available as DUO version as well, this enables the formation of complete sluice groups.
Versions

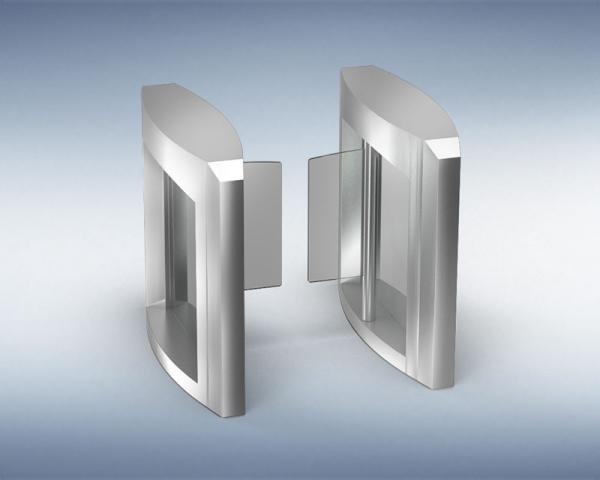

GU-DF 550 sensor barrier
The GU-DF 550 sensor barrier combines contactless access comfort with a high pass-through rate. It ensures a high degree of flexibility when designing entrance
areas: closed or open operation mode is possible. With the open operation mode for authorised personnel, the barrier elements remain open and only close if the
release has not been given. In the closed operating mode, bi-directional operation is possible with the entry and exit in the same lane. If more than two sensor barriers are used side by side, the DUO version in the centre visually rounds off the ensemble and lends it symmetry.
Versions
GU-DF 550: sensor barrier with swing leaf on one side
GU-DF 550 DUO: sensor barrier with swing leaf on both sides
GU-DF 550 DUO: sensor barrier with swing leaf on both sides
Product features
Automatic drive for comfortable access
Suitable for operation in one or both directions
Can be used in open and closed operation mode
Suitable for operation in one or both directions
Can be used in open and closed operation mode
| Designation | Sensor barrier GU-DF 550 |
| Passage | 550mm |
| Length | 1200mm |
| Width | 1150mm |
| Height | 1052,5mm |
| Weight | app. 2 x 70kg |
| Supply voltage | 230 V AC ~ 50-60Hz |
| Power consumption | 2 x 100 VA |
| Material | Stainless steel 1.4301; plexiglass barrier elements |
| Ground surface | Grain 220 |
| Communication | Potential-free contacts |
| Special versions available on request. |
GU-LI 550 sensor barrier
Ideal for heavily trafficked and prestigious entrance areas such as those in office and administration buildings, banks or VIP areas of stadiums: the GU-LI 550 sensor barrier provides visual highlights, accelerates the flow of persons and provides protection with high sliding doors against attempts to climb over. If more than two sensor barriers are used side by side, the DUO version in the centre visually rounds off the ensemble and lends it symmetry.
Versions
GU-LI 550: sensor barrier with sliding panel on one side
GU-LI 550 DUO: sensor barrier with sliding panel on both sides
GU-LI 550 DUO: sensor barrier with sliding panel on both sides
Product features
Automatic drive for comfortable access
Suitable for operation in one or both directions
Climb-over protection with 1700 mm high barrier elements
Suitable for operation in one or both directions
Climb-over protection with 1700 mm high barrier elements
| Designation | Sensor barrier GU-LI 550 |
| Passage | 980mm |
| Length | 1200mm |
| Width | 1150mm |
| Height | 1700mm |
| Weight | app. 2 x 70kg |
| Supply voltage | 230 V AC ~ 50-60Hz |
| Power consumption | 2 x 100 VA |
| Material | Stainless steel 1.4301 |
| Ground surface | Grain 220 |
| Communication | Potential-free contacts |
| Special versions available on request. |
