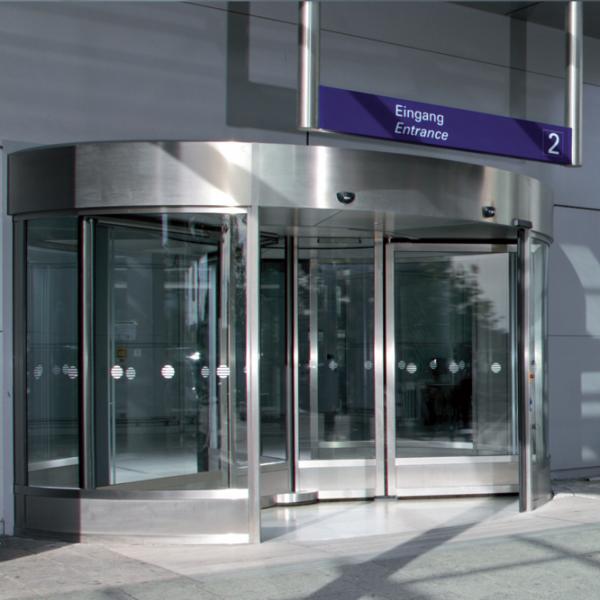

GGR large-capacity revolving door

For large visitor flows and use in escape and rescue routes, the large-capacity revolving door is the elegant and energy-saving entrance solution. This door combines modern design with high functionality in an ideal way. For example, comfortable passage with shopping carts and prams or wheelchairs is always possible. The leaves are divided in two and held securely with magnetic locks in normal operation. In the event of a fire or a power failure, or if the emergency push-button has been pushed, the panel fixation is released so the sliding panels can be folded away around the centre column in the escape direction. The fully automatic revolving door is safeguarded with sensors and contact strips in accordance with the current standards DIN 18650 and EN 16005 and is type-tested by TÜV.

• Ideal for large numbers of visitors

• Offers plenty of space for shopping carts, prams, wheelchairs

• Suitable for use in escape and rescue routes[1] due to foldable leaves, which are securely fixed in normal operation

• Different materials and finishes for individual solutions

• Manual or automatic night locking feature

• Locked with shoot bolt locks on the door leaves or night lock










• Drum walls made of curved 10 mm laminated sheet safety glass (LSG) or heat-insulated sheet-metal panels

• Outdoor roof is waterproof

• LED lamps in the ceiling

• Entrance mat

• Loose-fixed flange connection

• Floor ring

• Floor pan

• Air curtain systems in different versions
