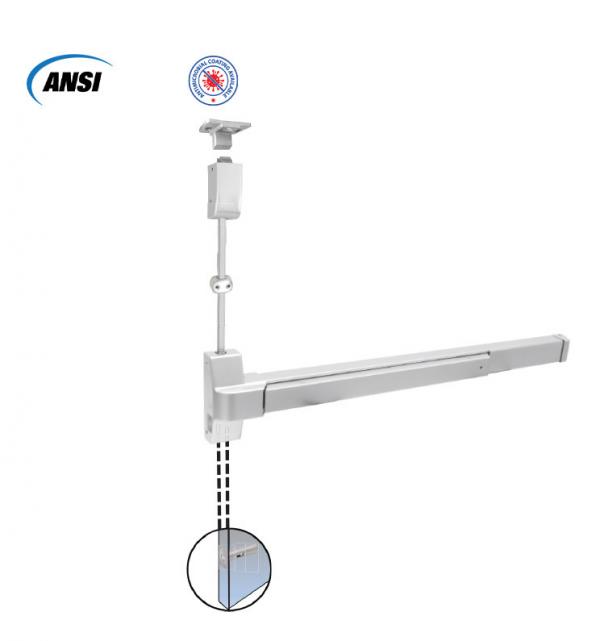

Less Bottom Rod Exit Device
Less Bottom Rod Exit Device
MODEL No # TE9720 - LBR
Specifications
Hand: Reversible
Finishes: AL & SSS standard (Others please consult factory)
Strikes: 720 Top Strike standard No bottom strike
Alarm: Available with ALM-1.
Latch bolt: Stainless Steel Top latch ¾” throw
Dead Latch bolt: None
Dogging Feature: ½ turn hex key dogging standard Not for fire-rated device
Cylinder Dogging: Available with CLD-1.
Door Size: Options for door width 24″, 36″ (standard), 48″
Doors: 1 ¾” ~2″ thick standard (Others please consult factory)
Projection: Push bar Neutral 2 15/32″ (63mm) Push bar Depressed 1 49/64″ (45mm)
Mounting Height: 41″ from CL to finished floor
Fire Rated: Certified EN1125 fire rated, 3 hours
How to order
Brand Identity
Model No
Type
Rating
Length
Dogging
Options
Finish
TE 98 – Premium
10 – Rim Panic Latch
F – Fire Rated
36
LD
– (None)
630
97 – Project
20 – Surface Vertical Rod
P – Panic Rated
48
HEX
LBR – Less Bottom Rod
605
90 – Commercial
30 – Mortise Panic Latch (NA for 91 Series)
CD
DE – Delayed Egress
606
40 – Concealed Vertical Rod
MD
REX – Request to Exit
625
ALE – Alarm Device with Type E Monitor
612
LR – Latch Retraction
613
